Navigating the Monitor - V2

This guide provides a brief overview of the Stat Temp monitor, including button functions and key indicators to help you operate the device efficiently.

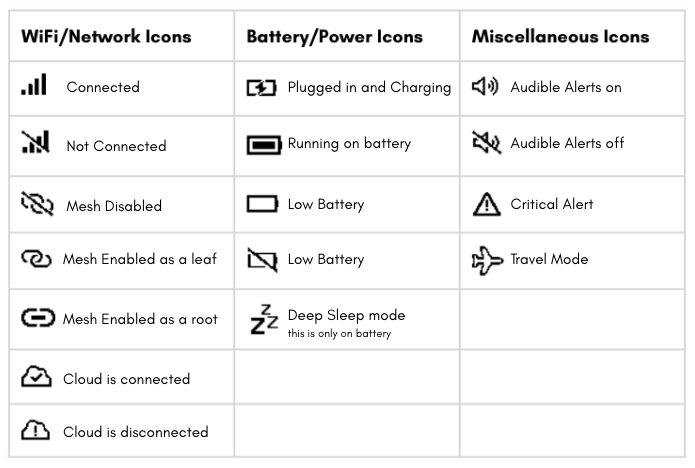

Different Icons that may be present

Monitor Button Functions

Stat Temp monitors support a variety of quick-access functions through button combinations. These actions differ depending on whether the monitor is starting up or in normal operation.

Normal Operation Actions

When the monitor is powered on, the monitor buttons can be used for quick access to specific features:

A short press is less than 2 seconds. A long press is approximately 5 seconds.

Button	Press Type	Action
White	Short press	Take a new sensor reading ("Read Now")
Black	Short press	Display current policies

The Stat Temp monitor includes a menu that allows you to access certain features, such as Travel Mode or Read Now, or allow you to make changes such as update wifi or perform a factory reset.

Press the white button to force a 'read now'.
Press the black button to access the current sensor's environment policy
Press both the white and the black buttons together to access the menu - the LED will turn a solid purple
- The white button then pages through the options
- The black button selects the option
To exit the Menu, press both buttons at the same time again.

Use the white button to scroll through the options in the menu, and use the black button to select your menu item.

Main Menu Item	Sub Menu Item	Description
Read Now		Takes a reading.
Travel Mode		Light will remain solid purple when selected Takes offline readings and updates the screen. Will beep at you when/if the sensor goes out of range To leave Travel mode, press both buttons again
View Configurations	View Environment Policies	View the parameters of the environment policies attached to your sensor(s).
	View Connected Sensors	shows the serial number of the connected sensor(s)
	View Monitor Settings	Sound on Warning/Critical
	View Network Settings	Wi-Fi Network Signal Strength IP Address of monitor MAC address Gateway DNS Server
	View Version	Firmware version Device OS Free RAM Free SD Space
	Up One Level
Administrative Activities	Connect Wi-Fi Network	Add new WiFi credentials, which do not erase the SD card
	Synchronize Time
	Boot into Safe Mode
	Factory Reset
	Disable Audible Alerts	Will disable system alerts - wifi and battery. Audible excursion alerts are managed on the website.
	Disable Auto Reboot	Stat Temp monitors auto-reboot every three hours. This option will disable that option.
	Up one Level (back)
Help
Exit

Monitor Troubleshooting

To view your monitor information, click on a sensor attached to the monitor from your dashboard. On the Sensor page, click Monitor Configurations to see details about your monitor. Here, you'll find connection information such as signal strength, MAC and IP addresses, memory space, and battery life. This will give you a snapshot view of the health of your monitor and what could be causing issues.

Network Troubleshooting

Network Issue

Solution

Network Connection Issues - 1004

No cloud icon or WiFi bars

This indicates there is a network error. If first setting up the device, the password could have been entered incorrectly. You will need to do a factory reset and try to reconnect the device.

If this monitor was previously connected to the WiFi network, there may have been a network change. Reset the wifi and try to reconnect. If you continue to have issues, please email stattemp@gohcl.com for assistance.

Network Connection Issues - 1005

No cloud icon, but it has WiFi bars

The monitor is connected to the network but cannot establish a connection to the server. This is usually caused by firewall restrictions. Contact your IT support team and provide them with the Firewall Requirements along with the devices MAC address.
